Air reservoir Vz Tr

Air reservoir Vz Tr

Technical data:
Working substance: Compressed air
Working pressure: 9 bar
Working temperature : -40 / 100°C

The air reservoir for pneumatic brakes and auxiliary pneumatic equipment of motor vehicles and their trailers. All sockets: M22x1,5
When placing an order pay attention to required plate location. If you request an alternative location, specify this in the note field.


Vypl˛te alternativnÝ text Manufacturing "0"

Vypl˛te alternativnÝ text Manufacturing "2"

Vypl˛te alternativnÝ text Manufacturing "3"

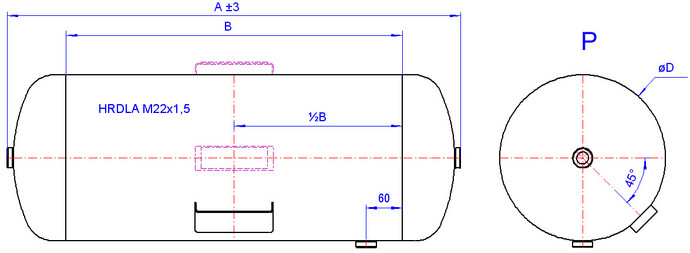

Vypl˛te alternativnÝ text Manufacturing "0034"

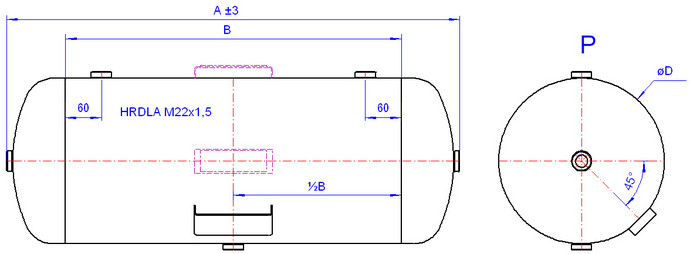

Vypl˛te alternativnÝ text Manufacturing "0046"

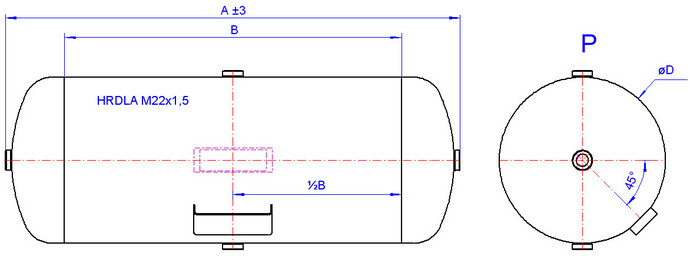

Vypl˛te alternativnÝ text Manufacturing "0064"

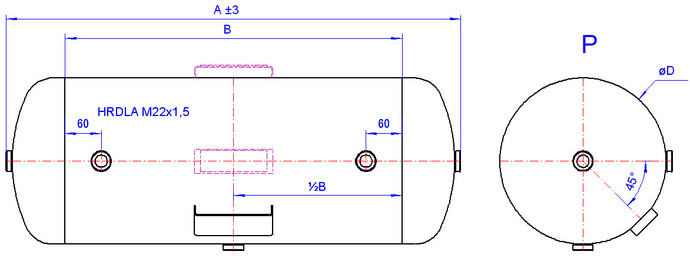

Vypl˛te alternativnÝ text Manufacturing "0292"

Vypl˛te alternativnÝ text Alternative plate location -  "0064" type equipment – the plate cannot be located according to the "V" version.
