Air reservoir Vz Krs - sheet 2

Air reservoir Vz Krs - sheet 2

Technical data:
Working substance: Compressed air
Working pressure: 15,5 bar
Working temperature : -40 / 100°C

The air reservoir for pneumatic brakes and auxiliary pneumatic equipment of motor vehicles and their trailers. All sockets: M22x1,5
When placing an order pay attention to required plate location. If you request an alternative location, specify this in the note field.

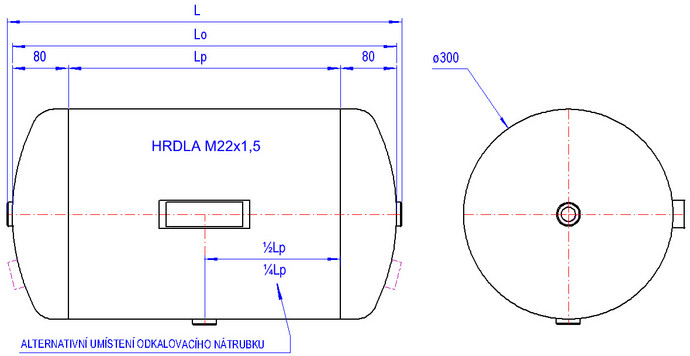

Vypl˛te alternativnÝ text Manufacturing "0"

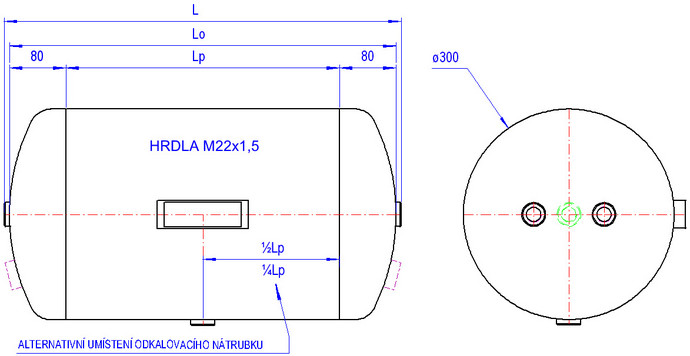

Vypl˛te alternativnÝ text Manufacturing "2"

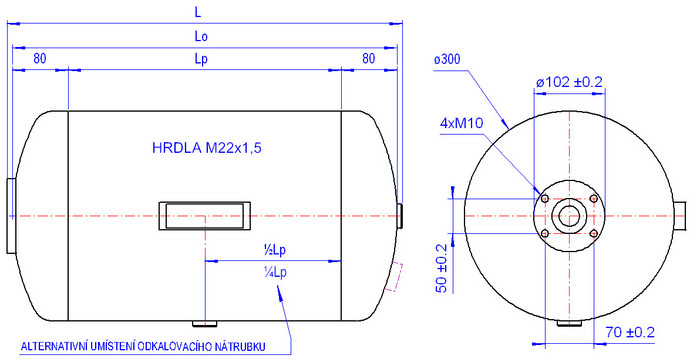

Vypl˛te alternativnÝ text Manufacturing "3"

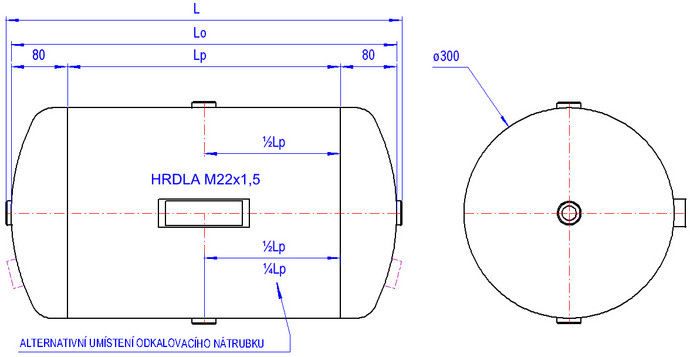

Vypl˛te alternativnÝ text Manufacturing "64"

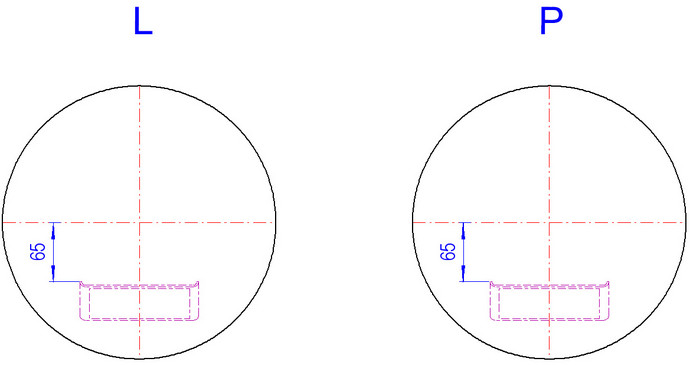

Vypl˛te alternativnÝ text Alternative plate location – the plate can be located on the left or right bottom; "3" type equipment – on the right-hand side only
