Air reservoir Vz ÈD 46E 600/600
Air reservoir Vz ÈD 46E 600/600
Technical data:
Working substance: Compressed air
Working pressure: 10 bar
Working temperature : -40 / 100°C
The air reservoir is designed, approved and manufactured according to ÈSN EN 286-3
The air reservoir for pneumatic brakes and auxiliary pneumatic equipment of Škoda engines
The air reservoir can be supplied subject to takeover according to ÈD V6 regulation
Volume: 600 L

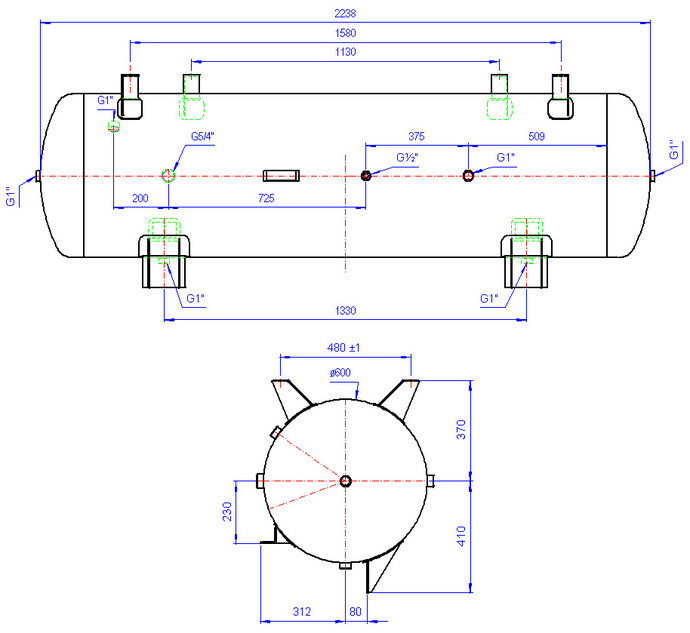

Škoda Drawing No.: Lo 79797/g
Vanìk Drawing No.: 1 KTV 05705
Vz ÈD 46E 600/600
-
Catalog sheet Vz ÈD 46E 600/600
, size: 289.83 kB, last update: 29.03.2011
